두배는 요홈 플랜지 어댑터 13 5/8 10,000 Psi Ｘ 9 3,000 Psi를 흩뿌렸습니다.

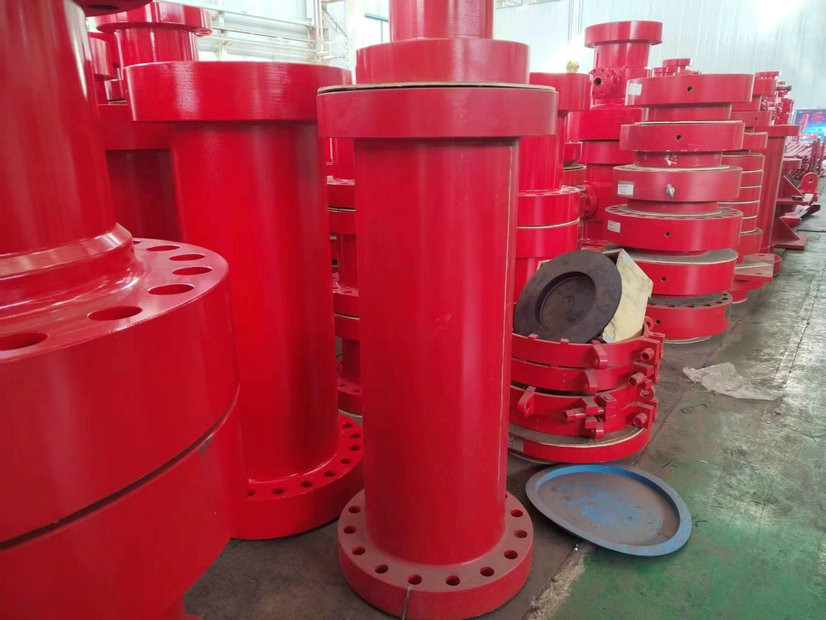

Double Studded Adapter Flange (DSAF) or Double Studded Adapter (DSA) is a flange with a through bore and a ring groove on each side, drilled and tapped bolt hole sets on both sides and tapped end studs complete with nuts fitted on both sides. Unlike a spacer, the two sides are usually different in size and/or pressure rating. Double studded adapter flanges are commonly utilised to connect and adapt flanges with different nominal sizes, pressure ratings, and configurations.
두배 스터딩된 요홈 플랜지 어댑터 매개 변수
| C.5.1 | 13-5/8 10,000 psi Ｘ 13-5/8 5,000 psi. |
| C.5.2 | 13-5/8 10,000 psi Ｘ 13-5/8 3,000 psi. |
| C.5.3 | 13-5/8 10,000 psi Ｘ 13-5/8 2,000 psi. |
| C.5.4 | 13-5/8 10,000 psi Ｘ 11 10,000 psi. |
| C.5.5 | 13-5/8 10,000 psi Ｘ 11 5,000 psi. |
| C.5.6 | 13-5/8 10,000 psi Ｘ 11 3,000 psi. |
| C.5.7 | 13-5/8 10,000 psi Ｘ 11 2,000 psi. |
| C.5.8 | 13 5/8 10,000 psi Ｘ 7-1/16 10,000 psi. |
| C.5.9 | 13 5/8 10,000 psi Ｘ 7-1/16 5,000 psi. |
| C.5.10 | 13-5/8 10,000 psi Ｘ 7-1/16 3,000 psi. |
| C.5.11 | 13-5/8 10,000 psi Ｘ 7-1/16 2,000 psi. |
| C.5.12 | 13 5/8 10,000 psi Ｘ 9 10,000 psi. |
| C.5.13 | 13 5/8 10,000 psi Ｘ 9 5,000 psi. |
| C.5.14 | 13 5/8 10,000 psi Ｘ 9 3,000 psi. |
| C.5.15 | 13 5/8 10,000 psi Ｘ 9 2,000 psi. |
| C.5.16 | 4-1/16 10,000 psi Ｘ 3-1/16 10,000 psi. |
| C.5.17 | 4-1/16 10,000 psi Ｘ 3-1/8 5,000 psi. |
| C.5.18 | 4-1/16 5,000 psi Ｘ 3-1/8 5,000 psi. |
| C.5.19 | 2- 1/16, 5000 psi Ｘ 3 1/8 5000 psi |
| C.5.20 | 2- 1/16, 2,000 psi Ｘ 3 1/8 5,000 psi |
| C.5.21 | 3- 1/8, 2,000 psi Ｘ 3 1/8 5,000 psi |
| C.5.22 | 3- 1/8, 3,000 psi Ｘ 3 1/8 5,000 psi |
특징 :
